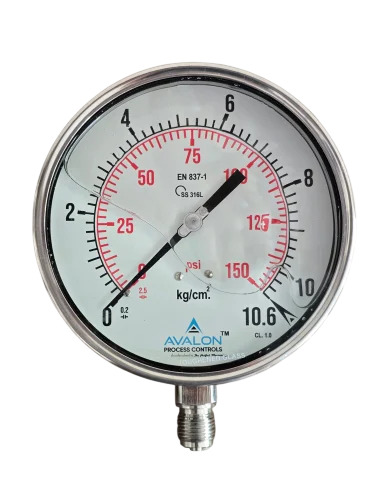

Diaphragm Type Pressure Gauge

Name: Diaphragm Type Pressure Gauge
Brand: AVALON PROCESS CONTROLS
Price: 2950 INR
Availability: InStock

Price 2950 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Diaphragm Type Pressure Gauge Specification

Sensor Type
Diaphragm

Display
Analog

Outer Size
100 mm

Seal Material
Stainless Steel Diaphragm

Grade
Industrial

Material
Stainless Steel

Dial Material
Acrylic

Pointer Material
Aluminium Black

Processing Type
Liquid Filled

Diameter
100 mm

Glass Size
100 mm

Mount Type
Bottom Flange

Scale Range
0 to 25 Bar

Accuracy
Class 1

Finishing
Matte Polished

Measure Pressure Of
Gauge Pressure

Accessories
Flange, Mounting Screws

Nominal Size
100mm

Dial Size
4 inch

Over Range Protection
130% FSD

Available Size
100, 150mm

Measuring Principle
Diaphragm

Dial Type
Liquid Filled

Wetted Parts
Stainless Steel

Connection Size
40NB Flange

Application
Pharma Industry

Connection Type
Flange type

Casing Material
Stainless Steel

Pressure Range
Up to 25 Bar

Liquid Filling
Glycerine

Made In
India

Window Material
Acrylic

Mounting
Bottom

Diaphragm Type Pressure Gauge Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Diaphragm Type Pressure Gauge

Discover the enviable Diaphragm Type Pressure Gauge, flawlessly engineered for industrial excellence. With a dial size of 4 inches and a robust stainless steel, matte-polished casing, this pressure gauge ensures reliability in demanding settings. The praiseworthy glycerine liquid filling and stainless steel diaphragm provide superior stability and performance up to 25 Bar. Its acrylic window and analog display enhance visibility, while the bottom flange mount offers secure installation. Benefit from this ephemeral opportunity for instant checkout-available for a limited time from trusted Indian manufacturers and suppliers.

Versatile Applications in Pharma and Beyond

The Diaphragm Type Pressure Gauge proves indispensable in plant operations across the pharmaceutical sector, ensuring pinpoint pressure readings vital for sensitive processes. Beyond pharma, it finds use in chemical manufacturing, food processing, and water treatment facilities, where precision and durability are paramount. Designed for gauging liquid and gaseous pressures reliably, it's ideal for settings requiring praiseworthy instrumentation and robust over-range protection.

Sample Policy and Supply Advantages

Sample gauges are offered to enable confident decision-making-a minimal charge may apply, including transportation costs. Our trusted policy ensures you experience the flawless build and performance firsthand before larger procurement commitments. We offer prompt sample dispatch and maintain enviable supply ability, catering seamlessly to industrial bulk demands, making our service both customer-friendly and efficient for instant checkout opportunities.

FAQ's of Diaphragm Type Pressure Gauge:

Q: How does the diaphragm mechanism work in this pressure gauge?

A: The diaphragm in this pressure gauge responds to pressure changes by flexing, which in turn drives the analog pointer. This mechanism delivers accurate, stable readings, especially in applications involving corrosive or viscous media.

Q: What is the benefit of glycerine liquid filling in this gauge?

A: Glycerine liquid filling dampens vibrations and fluctuations within the gauge, ensuring more stable, praiseworthy readings and extending the lifespan of internal components in harsh industrial environments.

Q: Where is this pressure gauge commonly used?

A: It is widely used in the pharmaceutical industry, chemical plants, food processing units, and water treatment facilities-settings requiring flawless accuracy and robust build quality.

Q: What is included when purchasing the pressure gauge?

A: Each purchase comes complete with a 40NB flange, necessary mounting screws, and a matte-polished stainless steel finish for enduring performance.

Q: When can I expect to receive a sample?

A: Samples are available upon request and are promptly dispatched upon acceptance of the sample policy, with minimal charges applicable for the product and transportation.

Q: How does over-range protection enhance gauge reliability?

A: The gauge has 130% Full Scale Deflection (FSD) over-range protection, safeguarding the instrument against pressure surges and ensuring sustainable accuracy during unpredictable conditions.
